DJI Agras T40 Spraying Drone

4 page visitors in last 24 hrs

Page updated by Will D. on April 25, 2024

Current Sale Offer: Get $1,737 off

Jump to 6 bundles below

The DFH team thrives on supporting our customers as they use the equipment that we advised. We consider this to be the life of our team, and our shared future in Australian agriculture.

Check out our 4-min T40 demo video shot in Mummel NSW, June 2023.

The T40 came before the T50 and can lift 40L of liquid or 50kg of dry particles (fert, seeds, urea, baits etc). Compared to the T30, the T40 can fly faster, has a higher flow rate, and wider spray width (swath) – these all equate to more hectares covered per hour (up to 110 ha per day in optimal conditions, spraying up to 12L/ha). Other major improvements over the T30 include an onboard mapping camera on the aircraft, a much larger and brighter screen on the controller (note you can now input the required droplet size, up to 500 microns), and onboard image stitching (mapping) in the controller. The new rotary-style nozzles create more uniform/consistent droplet sizes when spraying.

Will – DFH tech team
Chat with our AI Agras T40 expert

Sale is currently on, see pricing in the bundles below

5 good reasons to order with DFH

2023-24 $20,000 instant asset write-off for farm business. Details here.

6 reasons why spray drones have a big future in small plot broadacre farming

Video tutorials for DJI Agras T40

Image gallery - DFH T40 setup days & demo days

2024: View upcoming spray drone demo day dates and locations

With every spray drone sold, DFH supports our customers in 5 key ways:

1. A full day equipment set up and training session, face to face on your property or an agreed location. Via Google Meet online if a particularly remote location. DFH is an official DJI authorised dealer for agricultural spray drones.

2. A complimentary Phantom 4 RTK flight to contour map the first section of your property that you wish to spray first (up to 40 ha). Particularly useful if you have hilly or complicated terrain to spray.

3. Credit for receiving spray drone job inquiries from our job inquiries marketplace (35,000 inquiries processed). Very handy if you wish to use your spray drone as a commercial business or just to pick up the odd local job.

4. Extensive T40, T30 and T10 parts supply locally in Sydney for express shipping to customers when your spray drone is out of action. Considerable T20 parts also in stock and some MG-1P parts.

5. An extra set of Tee jet nozzle tips to suit your application and goals (your choice of fine mist or heavier droplet size tips, AI or non-AI).

DJI Agriculture Authorised Service Center (ASC) & Authorised Dealer

Drones For Hire (DFH) is a DJI Agriculture Authorised Service Center (ASC) and authorised dealer. DFH has multiple staff certified as official DJI Academy Certified Agras Instructors & DJI Certified Agras Repair Technicians.

Choosing a spray drone manufacturer

At DFH we sell and recommend DJI spray drones and we are an official DJI dealer. DJI accounts for 75%+ of the world's total drone market and is known as the Apple of the drone industry. In 2018 DJI raised roughly $1 billion in funds and has 14,000 employees and 17 offices internationally. DJI's factories in Shenzhen include highly sophisticated automated assembly lines. Many of the components for these assembly lines are built in-house. We believe DJI has the best engineers, production lines, and the most innovative spray drones in the world. Other brands will follow but will find it very difficult to catch up to DJI's standard of dependability and safety - for example in late 2021 one of China's largest news sites posted this article translated in English (original source) and video. We forecast that spray drones will soon have onboard mapping, plant species classification, and spot spraying in real-time, and that DJI will be at the forefront of these innovations, delivering them to market after they have been thoroughly tested.

Note: full specs of the drone are in the "Specs" tab.

Key features:

The T40 comes with several design improvements that enable more uniform spraying, three-minute disassembly, as well as better durability and corrosion resistance. The drone further supports real-time weight monitoring sensors to optimize spreading and provide accurate refill alerts.
DJI has equipped the T40 with an onboard mapping camera and an adjustable gimbal so that the drone can collect farmland and orchard images in real time, build maps locally, and identify plot boundaries and obstacles automatically for intelligent route planning and efficient spraying and spreading.
Further, with the DJI Smart Agriculture cloud platform, users can automate field inspections, crop growth analysis, and disease monitoring. In addition, pairing this system with the DJI P4 Multispectral drone allows farmers to apply solutions based on specific variables according to an automatically-generated farmland prescription map.
Meanwhile, DJI T40’s new and improved 30,000 mAh intelligent flight battery promises an ultra-long service life with 1,500 charges. The smart charging hub can power a battery fully in 9 minutes.

The AGRAS T40 is equipped with the revolutionary Coaxial Twin Rotor design, enabling it to carry a spray load of 40 kg and a spread load of 50 kg (70 L). The aircraft is built in with a Dual Atomized Spraying System, DJI Terra, Active Phased array Radar and Binocular Vision. It supports multiple missions from surveying, mapping, to spraying and spreading, helping you achieve ultimate precision in your agricultural operations.

Massive payload increase thanks to the coaxial twin rotor

The AGRAS T40 features a coaxial twin rotor design that increases the payload capacity by 30% with a maximum payload of 50 kg. Its foldable design reduces the aircraft size by 70% for greater portability.

Dual atomization for even spraying

12 L/min

Magnetic Drive Impeller Pump

Dual Atomized Centrifugal Sprinkler

Enhanced spreading efficiency for superior performance

Real-time weighing

The aircraft is equipped with a weighing sensor that monitors the spread quantity and remaining payload.

Fast disassembly and cleaning

The spreading device can be dismantled in 3 minutes and washed with water.

Omnidirectional Obstacle Sensing

Active Phased Array Radar + Binocular Vision

Mapping, spraying and spreading, all in one

The AGRAS T40 combines mapping, spraying and spreading functions, while its UHD camera and adjustable gimbal enable easy capture of your desired view. Farmland and orchard images can be captured in real time, and local maps can be generated using the remote controller with the D-RTK 2 Mobile Station. The system detects land boundaries and obstacles automatically, for quicker planning of flight routes over farmland and hilly orchards.

Fully enhanced remote controller for smoother, faster mapping

The 8-core processor makes mapping of 6.67 hectares possible in 10 minutes. Minimizes wasted journeys with intelligent route planning, for greater efficiency. The large 7-inch high brightness screen offers a broader view with refined detail. A wide range of custom physical buttons provides flexible control.

Robustly tested for ultimate reliability

The core components are designed to withstand complex and harsh farmland environments. They have passed a host of rigorous tests such as corrosion prevention, high and low temperature, and aging tests, to ensure peace of mind for the user.

Ultra-fast charging

12000W Multifunctional Inverter Generator with new EFI technology and 15% fuel saving. The charging station produces 1500W AC output, sufficient to power the remote controller, water pump, reloader, lights, and other components. The 30000mAh Intelligent Flight Battery with its standard air-cooled heat sink can cool down rapidly. Capacity up to 30000 mAh.11.5C while discharging, 6C while charging. Warranty coverage of 1,500 charging cycles.

DJI Agras Intelligent Cloud

By pairing AGRAS T40 with the Phantom 4 Multispectral, the platform allows you to perform variable spraying/spreading operations with precision based on the farmland’s prescription map. The feature is useful for the spraying of fertilizers on rice, fertilizers and defoliants on cotton crops, and nutrient solutions on soybeans and corn.

Aircraft Parameters

Total weight
38 kg (without battery)
50 kg (with battery)

Max Takeoff Weight^{^[1]}
Max takeoff weight for spraying: 90 kg (at sea level)
Maximum takeoff weight for spreading: 101 kg (at sea level)

Max Diagonal Wheelbase
2184 mm

Dimensions
2800 mm × 3150 mm × 780 mm (arms & propellers unfolded)
1590 mm × 1930 mm × 780 mm (arms unfolded, propellers folded)
1125 mm × 750 mm × 850 mm (arms folded)

Hovering Accuracy Range (with strong GNSS signal)
RTK positioning enabled:
±10 cm horizontal, ±10 cm vertical
RTK positioning disabled:
±60 cm horizontal and ±30 cm vertical (radar enabled: ±10 cm)

RTK/GNSS Operating Frequency
RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, Galileo E1/E5
GNSS: GPS L1, GLONASS F1, Galileo E1, BeiDou B1

Hovering Time^{^[2]}
Hovering without payload: 18 min (@30000 mAh & takeoff weight 50 kg)
Hovering and spraying with full payload: 7 min (@30000 mAh & takeoff weight 90 kg)
Hovering and speading with full payload: 6 min (@30000 mAh & takeoff weight 101 kg)

Max flight radius can be set
2000 m

Max Wind Resistance
6 m/s

Propulsion System - Motor

Stator Size
100×33 mm

Motor KV Value
48 RPM/V

Motor Power
4000 W/rotor

Propulsion System - Propeller

Diameter
54 inch

Rotor Quantity
8

Dual Atomized Spraying System - Operation Box

Operation Box Capacity
Full load 40 L

Operating Payload
Full load 40 kg^{^[1]}

Dual Atomized Spraying System - Sprinkler

Sprinkler Model
LX8060SZ

Sprinkler Quantity
2

Droplet Size
50-300 μm

Max Effective Spray Width^{^[3]}
11 m (relative operating altitude 2.5 m, flight speed 7 m/s)

Dual Atomized Spraying System - Water Pump

Pump Model
Magnetic Drive Impeller Pump

Max Flow Rate
6 L/min*2

T40 Spreading System

Applicable Materials
Solid dry particles with a diameter of 0.5 to 5 mm

Spread Tank Volume
70 L

Spread Tank Internal Load
50 kg^{^[1]}

Spread Width of Spreading System^{^[4]}
7 m

Recommended Operating Temperature
0°C to 40°C (32°F to 104°F)

Active Phased Array Omnidirectional Radar

Model Number
RD2484R

Terrain Follow
Max incline: 30°

Obstacle Avoidance^{^[5]}
Sensible distance (horizontal): 1.5-50 m
FOV: 360° horizontal, ±45° vertical
Operating conditions: Flying higher than 1.5 m over the obstacle at a speed not exceeding 7 m/s
Safe distance: 2.5 m (distance between the propeller tip and obstacle when the aircraft is hovering after braking)
Sensing direction: horizontal omnidirectional avoidance;
Sensible distance (above): 1.5-30 m
FOV: 45°
Operating conditions: Available during takeoff, landing, and ascending when an obstacle is more than 1.5 m above the aircraft
Safe distance: 2.5 m (distance between the top of the aircraft and the obstacle when the aircraft is hovering after braking)
Sensing direction: Upward

Active Phased Array Backward and Downward Radar

Model Number
RD2484B

Altitude Detection^{^[5]}
Within the altitude detection range: 1-45 m
Fixed altitude range: 1.5-30 m

Rear Obstacle Avoidance^{^[5]}
Sensible distance (rear): 1.5-30 m
FOV: ±60° horizontal, ±25° vertical
Operating conditions: Available during takeoff, landing, and ascending when an obstacle is more than 1.5 m behind the aircraft and the flight speed does not exceed 7 m/s
Safe distance: 2.5 m (distance between the propeller tip and obstacle when the aircraft is hovering after braking)
Sensing direction: backward

Binocular Vision System

Measurable Range
0.4-25 m

Effective Sensing Speed
≤7 m/s

FOV
Horizontal: 90; Vertical: 106°

Work Environment Requirements
Normal lighting with clearly textured surfaces

Intelligent Remote Controller

Model
RM700

O3 Pro Operating Frequency^{^[6]}
2.4000 to 2.4835 GHz
5.725 to 5.850 GHz

O3 Pro Signal Effective Distance
SRRC: 5 km
MIC/KCC/CE: 4 km
FCC: 7 km
(aircraft altitude at 2.5 m in an unobstructed environment with no interference)

Wi-Fi Protocol
WIFI 6

Wi-Fi Operating Frequency^{^[6]}
2.4000 to 2.4835 GHz
5.150 to 5.250 GHz
5.725 to 5.850 GHz

Bluetooth Protocol
Bluetooth 5.1

Bluetooth Operating Frequency
2.4000-2.4835 GHz

Location
GPS + Galileo + BeiDou

Display Screens
7.02-inch touch LCD with 1920*1200 resolution and 1200cd/m brightness²

Supported Aircraft
AGRAS T40, AGRAS T20P

Operating temperature
-20°C to 50°C (-4°F to 122°F)

Storage Temperature Range
-30°C to 45°C (within one month)
-30°C to 35°C (between one month and three months)
-30°C to 30°C (between three months and one year)

Charging Temperature
5° to 40°C (41° to 104°F)

Internal Battery Life
3.3 hours

External Battery Life
2.7 hours

Charging Type
Use a USB-C charger with a maximum rated power and voltage of 65 W and 20 V. The DJI Portable Charger is recommended.

Charging Time
Two hours for both internal and internal plus external batteries (to use the official charging method when the aircraft is off)

T40 Intelligent Flight Battery

Model
BAX601-30000mAh-52.22V

Weight
Approx. 12 kg

Capacity
30000 mAh

Voltage
52.22 V

D12000iE Multifunctional Inverter Generator

Output Channel
1. DC charging output 42-59.92V/9000W
2.Power supply for air-cooled heat sink 12 V/6 A
3.AC output 230V/1500W or 120V/750W [7].

Battery Charging Time
To fully charge one battery (T40 battery) takes 9-12 mins

Fuel Tank Capacity
30 L

Starting Method
Starting the Generator via the One-Button Start Switch

Max Power of Engine
12000 W

Fuel Type
Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content less than 10%
(*Brazil: unleaded gasoline with RON ≥ 91 and alcohol content of 27%)

Reference Fuel Consumption [8]
500 ml/kWh

Engine Oil Model
SJ 10W-40

Definition

[1] Data was measured at sea level. The payload weight is greatly affected by the ambient temperature and altitude. The payload weight needs to be reduced by 10 kg for every 1,000m increase in altitude. The DJI Agras app will recommend the payload weight according to the current status and surroundings of the aircraft. When adding materials, the maximum weight should not exceed the recommended value, otherwise flight safety may be compromised.
[2] Hovering time measured at sea level with a wind speed lower than 3 m/s and ambient temperature of 25°C, when the battery power fell from 100% to 0%. The data is for reference only. The actual environment may differ from the testing environment. The figure listed is for reference only.
[3] The spray width of the spraying system depends on the operating scenario.
[4] The spread width of the spreading system depends on the operating scenario.
[5] The effective sensing range varies depending on the material, position, shape, and other properties of the obstacle.
[6] In some countries, the 5.1 and 5.8GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Please refer to local laws and regulations. [7] The actual power and voltage may vary according to local regulations
[8] Measured using RON 92 gasoline at near sea level with an ambient temperature of 25°C, while charging at 9 kW.

Aircraft: How is the flight performance of the AGRAS T40?
Maximum flight altitude: 100 m (subject to local regulations, please check with your local dealer);
Longest control range: 2,000 m;
Maximum flight speed 10 m/s, maximum operating flight speed 10 m/s;
Hovering time: 18 min (@30,000 mAh, takeoff weight 50 kg), 7 min (@30,000 mAh, takeoff weight 90 kg), 6 min (@30,000 mAh, takeoff weight 101 kg)
(*The hovering time was measured close to sea level at a wind speed lower than 3 m/s and ambient temperature of 25°C, and is for reference only. The actual environment may differ from the testing environment. Please follow the actual measurement outcome.); What is the hourly operating efficiency of the AGRAS T40?
On average 21.33 hectares per hour.
*Data was measured using AGRAS T40 and subject to the operating environment and operating parameters. Flight parameters for paddy field operations: consumption rate 15 L/ha, spray width 11 m, flight speed 7 m/s, altitude 3 m.; Compared to the AGRAS T30, what are the advantages of the AGRAS T40?
1.Hourly operating efficiency is increased to 21.33 hectares*, payload increased to 50 kg*, with a spreading capacity of 1.5 tonnes per hour*.
(*Data was subject to the operating environment and parameters. T40 flight parameters: consumption rate 15 L/ha, spray width 11 m, flight speed 7 m/s, flight altitude 3 m.
*Data was measured at sea level. The payload weight is greatly affected by the ambient temperature and altitude. The payload weight needs to be reduced by 10 kg for every 1,000m increase in altitude. The DJI Agras app will recommend the payload weight according to the current status and surroundings of the aircraft. When adding materials, the maximum weight should not exceed the recommended value, otherwise flight safety may be compromised.
*Data was measured with urea and subject to the operating environment and parameters. Actual data may vary in operation. T40 flight parameters: consumption rate 149 kg/ha, spread width 7 m, flight speed 7 m/s, flight altitude 3 m, spreading disc rotation speed 1,000 rpm. The area is free of obstructions and in a regular terrain shape. The fertilizers are prepared in advance and can be loaded quickly.)
2. The AGRAS T40 is equipped with Active Phased Array Radar and Binocular Vision. The integrated functions improve the aircraft’s ability to bypass and avoid obstacles in complex scenarios, enabling smoother terrain following.
3. The dual atomized spraying system of the AGRAS T40 works optimally for the spreading of powder and covers more area of an orchard.
4. The AGRAS T40 creates stronger wind with a deeper penetrating effect during orchard operations.
5. The AGRAS T40 has an HD FPV camera with an adjustable gimbal angle, which supports the mapping of orchards and farmland.; What is the rotating direction of the propellers on the AGRAS T40?; What is the safe distance for personnel when an AGRAS T40 is taking off or landing?
Personnel should keep a distance of at least 10 m.
Dual Atomized Spraying System: What is the droplet size of the dual atomized spraying system of the AGRAS T40? Is the droplet size adjustable?
Sprinkler rotating speed range: 8,000-16,000 r/min; Droplet size: 50-300 μm; five adjustable degrees: very big, big, medium, small, and very small.; Does the AGRAS T40 support the spreading of powder?
Available; What are the features of the new centrifugal valve on the AGRAS T40?
It is a mechanical structure requiring no additional sensors.
Active Phased Array Radar and Binocular Vision: What functions are provided by Active Phased Array Radar and Binocular Vision on the AGRAS T40?
1.It supports obstacle avoidance and hovering in the horizontal and upward direction as well as obstacle avoidance and bypassing in the direction of the aircraft nose.
2.It supports precise altitude fixing below the aircraft for terrain following operations.; The AGRAS T40 carries both Active Phased Array Radar and Binocular Vision. What is the relationship between the two systems?
1.Binocular Vision enables smoother obstacle avoidance and terrain following.
2.Active Phase Array Radar is better equipped to avoid small obstacles such as power lines and tree branches.
3.The two systems complement one another to improve obstacle avoidance, bypassing, and terrain following in complex scenarios.; What is the sensing range of Active Phased Array Radar and Binocular Vision on the AGRAS T40?
Horizontal: 1.5-50 m
Above: 1.5-30 m
Rear: 1.5-30 m
Below: 1-45 m
Binocular vision: 0.4-25 m
(*The effective sensing range varies depending on the material, position, shape, local regulations and other factors.)
Surveying and Mapping: Does the AGRAS T40 support the surveying and mapping of orchards and farmland?
Available
(*The slopes of the terrain must be less than 15°.); Is an individual computer required for surveying and mapping using the AGRAS T40?
No computers are required. Mapping plans can be completed by simply using the Intelligent Remote Controller.; Is an internet connection required for transmitting survey photos on the AGRAS T40?
No internet connection is required. The photos can be downloaded via image transmission onto the Intelligent Remote Controller, where mapping and planning can then be performed locally in real time.; Can maps surveyed by the AGRAS T40 be used by other AGRAS T series aircraft?
Both T30 and T10 can fly orchard and farmland routes. Before a mission, check operating parameters such as the internal shrinkage distance, route spacing, and flight speed.; What is the surveying and mapping efficiency of the AGRAS T40?
With paddy field operations as an example, the remote controller maps 6.67 ha in 10 minutes. The operation efficiency for mapping orchards is relatively low. (*The remote controller’s mapping time, which can be affected by the firmware version, survey type, and other relevant factors.)
Intelligent Flight Battery and Charging Device: Does the AGRAS T40 come with an air-cooled heat sink?
Included as Standard; Does the D12000iE Multifunctional Inverter Generator support 230V AC output?
Supports 230V AC output with a maximum power of 1500W or120V with 750W. (*The actual power and voltage may vary according to local regulations.); Does the D12000iE Multifunctional Inverter Generator support one-click activation?
Yes (while connected to an Intelligent Flight Battery).; What is the fuel consumption rate of the D12000iE Multifunctional Inverter Generator?
500 ml/kWh (*Measured using RON 92 gasoline at near sea level with an ambient temperature of 25°C, while charging at 9 kW.)
Spreading System: What is the particle size range for the T40 Spreading System?
It can spread dry and solid particles with a diameter of 0.5 to 5 mm.; What is the effective spreading width of the T40 Spreading System?
7 m
(*The spread width depends on the operation scenario and parameters.); Is there any improvement in terms of safety protection with the T40 Spreading System?
The payload system adopts a modular design where the spreading system can be dismantled in one go, to avoid any contact with fertilizers which may cause corrosion.; Is there any improvement in the spreading ability of the T40 Spreading System?
1.The tank inlet is bigger which makes it faster to refill and increases operating efficiency.
2. T40’s spreading payload is increased to 50 kg.; What improvements have been made to the maintenance features of the T40 Spreading System?
1.The internal rotation shaft is improved with an anti-tangle design.
2.An easily removable door for fast cleaning and maintenance.
Intelligent Remote Controller: What is the battery level of the T40 Intelligent Remote Controller?
The internal battery lasts for 3.3 hours while the external battery lasts for 2.7 hours.; Does the T40 Intelligent Remote Controller come with an RTK Dongle?
It is not included as standard, and must be purchased additionally.
Compatibility of Products and Accessories: Which accessories are compatible with AGRAS T40/T20P/T30?

Flight Battery Compatibility AGRAS T40 AGRAS T20P AGRAS T30

T40 Intelligent Flight Battery Yes Yes, but with increased battery level Yes, but with increased battery level

T20P Intelligent Flight Battery No Yes No

T30 Intelligent Battery Yes, but with reduced payload Yes, but with increased battery level Yes

Charging Station Compatibility T40 Intelligent Flight Battery T20P Intelligent Flight Battery T30 Intelligent Flight Battery

D12000iE Multifunctional Inverter Generator Yes Yes (adaptive power) Yes (adaptive power)

T40 Intelligent Charger Yes Yes (adaptive power) Yes (adaptive power)

D6000i Multifunctional Inverter Generator Yes, but with slower charging Yes Yes, but with slower charging

T20P Intelligent Charger Yes, but with slower charging Yes Yes, but with slower charging

D9000i Multifunctional Inverter Generator Yes, but with slower charging (firmware upgrade required) Yes (firmware upgrade required) Yes

T30 Intelligent Charging Hub Yes, but with slower charging (firmware upgrade required) Yes (firmware upgrade required) Yes

Intelligent Remote Controller Compatibility AGRAS T40 AGRAS T20P AGRAS T30

T40 Intelligent Remote Controller Yes Yes No

T20P Intelligent Remote Controller Yes Yes No

Propeller Compatibility AGRAS T40 AGRAS T20P AGRAS T30

AGRAS T40 (top propellers) Yes Yes No

AGRAS T40 (bottom propellers) Yes No No

AGRAS T20P propellers Yes (top propellers) Yes No

Trusted suppliers to (see more):

Featured in:

Official warranties only:
100% brand new factory-sealed official manufacturer’s warranty items.
DJI Authorized Dealer

More about the DFH shop

All bundles are customisable. Just ask! [email protected] or 1300 029 829

T40 Drone Only

$31,735 $29,998 $1,737 OFF Extras

1 x DJI Agras T40, w/RC, charger, spray system, and all factory inclusions.
$30,998 $29,998

$1,000 off

1 x Free Delivery (Most Locations). Usually TOLL Road Express - Fast & Secure Road Freight. Must be by road as batteries are too large for air freight.
$350 Free

1 x 1-day equipment setup and training day (normally $175.0/hr)
Included

1 x Software: 12-months free subscription to DJI Terra - Agriculture Version. - DJI's mapping software for Agras drones (free in year 1, $490.0 inc gst for year 2+)
Included

1 x Software: Access to DJI SmartFarm App. For managing and sharing missions, collaboration, and more. See some helpful materials here
Included

Plus 12 items below

3-Battery Bundle

$44,464 $42,362 $2,101 OFF Extras

1 x DJI Agras T40, w/RC, charger, spray system, and all factory inclusions.
$30,998 $29,998

$1,000 off

3 x

3 x Batteries for T40 (BAX601-30,000mAh-52.22V). Approx. 10-13 min flight time. 3 is enough for continuous spraying for most people.
$11,220 $11,000

$220 off

T40 Spare Kit A. Full list: here
$1,509 $1,364.4

$144 off

1 x DJI T40 aircraft battery cooling station, w/matching cables set.
Included

1 x Free Delivery (Most Locations). Usually TOLL Road Express - Fast & Secure Road Freight. Must be by road as batteries are too large for air freight.
$350 Free

1 x 1-day equipment setup and training day (normally $175.0/hr)
Included

1 x Software: 12-months free subscription to DJI Terra - Agriculture Version. - DJI's mapping software for Agras drones (free in year 1, $490.0 inc gst for year 2+)
Included

1 x Software: Access to DJI SmartFarm App. For managing and sharing missions, collaboration, and more. See some helpful materials here
Included

Plus 12 items below

3-Battery Bundle + Spreader

$46,444 $44,332 $2,111 OFF Extras

1 x DJI Agras T40, w/RC, charger, spray system, and all factory inclusions.
$30,998 $29,998

$1,000 off

3 x

3 x Batteries for T40 (BAX601-30,000mAh-52.22V). Approx. 10-13 min flight time. 3 is enough for continuous spraying for most people.
$11,220 $11,000

$220 off

T40 Spare Kit A. Full list: here
$1,509 $1,364.4

$144 off

1 x DJI T40 aircraft battery cooling station, w/matching cables set.
Included

1 x T40 Spreading system (a hopper for spreading fertilizer granules, seeding, urea, Superphosphate, mouse baits etc.)
$1,980 $1,970

$10 off

1 x Free Delivery (Most Locations). Usually TOLL Road Express - Fast & Secure Road Freight. Must be by road as batteries are too large for air freight.
$350 Free

1 x 1-day equipment setup and training day (normally $175.0/hr)
Included

1 x Software: 12-months free subscription to DJI Terra - Agriculture Version. - DJI's mapping software for Agras drones (free in year 1, $490.0 inc gst for year 2+)
Included

1 x Software: Access to DJI SmartFarm App. For managing and sharing missions, collaboration, and more. See some helpful materials here
Included

Plus 12 items below

3-Battery Bundle + Spreader + Mobile Station

$51,043 $48,822 $2,220 OFF Extras

1 x DJI Agras T40, w/RC, charger, spray system, and all factory inclusions.
$30,998 $29,998

$1,000 off

3 x

3 x Batteries for T40 (BAX601-30,000mAh-52.22V). Approx. 10-13 min flight time. 3 is enough for continuous spraying for most people.
$11,220 $11,000

$220 off

T40 Spare Kit A. Full list: here
$1,509 $1,364.4

$144 off

1 x DJI T40 aircraft battery cooling station, w/matching cables set.
Included

1 x T40 Spreading system (a hopper for spreading fertilizer granules, seeding, urea, Superphosphate, mouse baits etc.)
$1,980 $1,970

$10 off

1 x DJI D-RTK 2 Mobile Station w/tripod included
$4,599 $4,490

$109 off

1 x Free Delivery (Most Locations). Usually TOLL Road Express - Fast & Secure Road Freight. Must be by road as batteries are too large for air freight.
$350 Free

1 x 1-day equipment setup and training day (normally $175.0/hr)
Included

1 x Software: 12-months free subscription to DJI Terra - Agriculture Version. - DJI's mapping software for Agras drones (free in year 1, $490.0 inc gst for year 2+)
Included

1 x Software: Access to DJI SmartFarm App. For managing and sharing missions, collaboration, and more. See some helpful materials here
Included

Plus 12 items below

3-Battery Bundle + Spreader + Mobile Station + M3E

$58,252 $55,815 $2,436 OFF Extras

1 x DJI Agras T40, w/RC, charger, spray system, and all factory inclusions.
$30,998 $29,998

$1,000 off

3 x

3 x Batteries for T40 (BAX601-30,000mAh-52.22V). Approx. 10-13 min flight time. 3 is enough for continuous spraying for most people.
$11,220 $11,000

$220 off

T40 Spare Kit A. Full list: here
$1,509 $1,364.4

$144 off

1 x DJI T40 aircraft battery cooling station, w/matching cables set.
Included

1 x T40 Spreading system (a hopper for spreading fertilizer granules, seeding, urea, Superphosphate, mouse baits etc.)
$1,980 $1,970

$10 off

1 x DJI D-RTK 2 Mobile Station w/tripod included
$4,599 $4,490

$109 off

1 x Mavic 3 Enterprise Series RTK Module
$1,160 $950

$210 off

1 x DJI Mavic 3 Enterprise
$6,049 $6,043

$6 off

1 x 1-year DJI Enterprise Shield Basic for M3E
Included

1 x Free Delivery (Most Locations). Usually TOLL Road Express - Fast & Secure Road Freight. Must be by road as batteries are too large for air freight.
$350 Free

1 x 1-day equipment setup and training day (normally $175.0/hr)
Included

1 x Software: 12-months free subscription to DJI Terra - Agriculture Version. - DJI's mapping software for Agras drones (free in year 1, $490.0 inc gst for year 2+)
Included

1 x Software: Access to DJI SmartFarm App. For managing and sharing missions, collaboration, and more. See some helpful materials here
Included

Plus 12 items below

3-Battery Bundle + Spreader + Mobile Station + M3M

$58,962 $56,641 $2,320 OFF Extras

1 x DJI Agras T40, w/RC, charger, spray system, and all factory inclusions.
$30,998 $29,998

$1,000 off

3 x

3 x Batteries for T40 (BAX601-30,000mAh-52.22V). Approx. 10-13 min flight time. 3 is enough for continuous spraying for most people.
$11,220 $11,000

$220 off

T40 Spare Kit A. Full list: here
$1,509 $1,364.4

$144 off

1 x DJI T40 aircraft battery cooling station, w/matching cables set.
Included

1 x T40 Spreading system (a hopper for spreading fertilizer granules, seeding, urea, Superphosphate, mouse baits etc.)
$1,980 $1,970

$10 off

1 x DJI D-RTK 2 Mobile Station w/tripod included
$4,599 $4,490

$109 off

1 x DJI Mavic 3 Multispectral
$7,919 $7,819

$100 off

1 x 1-year DJI Enterprise Shield Basic for M3M
Included

1 x Free Delivery (Most Locations). Usually TOLL Road Express - Fast & Secure Road Freight. Must be by road as batteries are too large for air freight.
$350 Free

1 x 1-day equipment setup and training day (normally $175.0/hr)
Included

1 x Software: 12-months free subscription to DJI Terra - Agriculture Version. - DJI's mapping software for Agras drones (free in year 1, $490.0 inc gst for year 2+)
Included

1 x Software: Access to DJI SmartFarm App. For managing and sharing missions, collaboration, and more. See some helpful materials here
Included

Plus 12 items below

April Sale: We’re adding these 12 items worth $387.29

1 x Extra (WB37) battery for remote controller (RC) (also used in RTK mobile station)
$99 $0

1 x 117 Piece Multifunctional Tool Set (item images)
$39.9 $0

1 x 4 in 1 SD/TF/CF/MS Card Reader, 5Gbps, USB3 & USB-C (item images)
$24.9 $0

1 x 128GB Samsung microSD card.
Great read & write speeds (up to 130MB/s). Water, shock, x-ray proof and 10-yr limited warranty.
$34.9 $0

1 x Telstra $30 Pre-Paid Data SIM Card
$30 $0

1 x ULANZI DR-02 Strobe Drone light (item images)
$24.99 $0

1 x Long Sleeve Work Shirt, Pilbara style.. Thick cotton twill, twin needle stitching, durable brass buttons. Available in Navy or Wheat. (please let us know your size) (item images)
$41 $0

1 x T40 Controller (RC) Screen protector. Protects your screen from scratches in outdoor use
$19.9 $0

1 x Pro Baseball Cap (item images)
$21.9 $0

1 x T40 Controller (RC) sun hood. Increases screen visibility on particularly bright circumstances/ times of day (item images)
$24.9 $0

1 x Drone operators' high-vis reflective safety vest (item images)
$25.9 $0

1 x Software: Access to DJI AGMS Ag. Management System. Your 'black box automatically logging flights & spraying/spreading activity ( https://agms-us.dji.com/ )
$0

Frequently Bought Together

DJI Air 3 Fly More Combo with RC 2. We think the Air 3 is great for farmers because of the 9x zoom. It is one of the most useful features on a drone for checking stock, fences and water. Also the Air 3 is a little louder so better for moving stock. The 32km flight distance allows you to cover more ground for checking or mustering. (item images)
$2,349 $2,249

$100 off

1 x Extra battery for T40 (BAX601-30,000mAh-52.22V)
$3,740 $3,700

$40 off

1 x T40 Spreading system (for spreading granules, pellets, seeds, mites )
$1,980 $1,970

$10 off

T40 80kg Payload Carrying System - The TD40 Plus system turns your T40 into a delivery drone (80kg capacity). Deliver anything! E.g. food, water and medical supplies to people stranded in flooded areas.

Instruction video,

Test video,

User video and PDF instruction. (item images)
$3,799 $3,289

$510 off

T40 40kg Payload Carrying System - The TD40 system turns your T40 into a delivery drone (40kg capacity). Deliver anything! E.g. food, water and medical supplies to people stranded in flooded areas.

Instruction video,

Test video,

User video and PDF instruction. (item images)
$2,799 $2,399

$400 off

Gigabyte G5 15.6in Laptop with bag (GeForce GTX 4050 Graphics card 6GB GDDR6, 64GB RAM, i7-12650H, 512GB SSD hard drive, FHD 144Hz). For running DJI Terra Ag. software to blast process of a large amount of images into drone maps. (item images)
$1,889

1 x DJI D-RTK 2 Mobile station with matching DJI tripod
$4,599

1 x T40 FPV Lens Protector (item images)
$129 $99

$30 off

T50 or T40 HDSD Heavy Droplet Spinner Discs - 1 pair (2 discs). Heavy saturation + narrow swath. Ideal for blackberry. Easy 5 min install.
$575 $519

$56 off

DFH T40 quick fill lid (not sold separately)
$299 $239

$60 off

T40 Spare Kit B. Full list: here
$7,087 $6,277

$810 off

DFH T50 T40 Fast Mover (item images)
$399 $349

$50 off

DFH RTK Station Pro Custom Hard Case (item images)
$749 $649

$100 off

DFH Batch Master (item images)
$6,717 $6,190

$527 off

For customers looking to do commercial spraying, you will need to apply for a Remotely Piloted Aircraft Operator’s Certificate (ReOC)
$2,500 $2,000

$500 off

DJI Relay Module with tripod (useful for boosting RC signal in hilly/mountainous areas or relatively tall crops like cane and corn) (item images)
$1,749

DJI Agras T40 Small Hopper Gate (big) (rapeseed). The current spreader gate for the DJI T40 only allows you to release no less than 5 KG per HA. DJI has received this feedback from their Agras customers across the world and have created a smaller spreader gate to allow you to spread at rates below 5 KG per HA.
$99 $89

$10 off

T40 Propeller Washer
$19 $10

$9 off

Full set of T40 spray tank with impeller pump and flow meter
$3,750 $3,250

$500 off

DJI Agras T40 Small Hopper Gate (small) (herbicide). The current spreader gate for the DJI T40 only allows you to release no less than 5 KG per HA. DJI has received this feedback from their Agras customers across the world and have created a smaller spreader gate to allow you to spread at rates below 5 KG per HA.
$89 $79

$10 off

Dual 15 amp outlet cable kit - required for dual cable charging (for Millers Falls GSC12000IY) (item images)
$299 $239

$60 off

DJI Agras T40 Cooling Station
$789 $689

$100 off

Smaller Generator, Millers Falls GSC12000IY. 11.85kVA (best for running 1 x T50 or T40) 85 kg.
$3,500 $3,289

$211 off

Larger Generator, Able LG24X1, 24 kVA, Diesel (best for running 2 x T50 or T40 at same time). 880 kg. Large, quiet and stable running at 1500 RPM. (item images)
$11,200 $10,975

$225 off

Millers Falls 13.75kVA Diesel Silenced Generator GSD13000Q
$5,399 $5,174

$225 off

Saber 7500w 16hp petrol generator with 2x ip66 worksafe compliant sockets sabgen9kbp (item images)
$1,599 $1,449

$150 off

RPA operator accreditation A starting point for new people	RePL (Remote Pilot Licence) A licence for individual pilots	(ReOC) RPA Operator's Certificate The highest standard for drone businesses
You can fly commercially without a drone pilot licence, but you must register your drone and get an RPA operator accreditation from CASA. It’s a convenient option for new people wanting to just get their drone in the air legally and start making some money. Remember flying a drone to make money is actually illegal in Australia unless you at least an RPA operator accreditation from CASA (or an RePL or ReOC). Here are 5 good reasons to make sure you are approved by CASA before you fly. How to get an RPA operator accreditation from CASA: Here are the 2 steps you need to do to be allowed (by CASA) to fly a drone for commercial use without needing a licence: Step 1: register your drone here, otherwise you would face a fine up to $11,100. Step 2: get an RPA operator accreditation before you fly here.	If your drone is over 2kg, and you typically prefer to fly for someone else's drone business (not start your own business), it is best to obtain a Remote Pilot Licence. By far the most popular licence option. RePL is typically a 5 day course, covering theory and practical, or do the theory part online + 2 days practical. This drone pilot licence does not expire and there is no renewal required! Minimum age is 17. Get course dates and quotes	Best if your drones are over 2kg and you wish to set up your own drone business and work directly with customers. Typically for aspiring drone businesses owners who plan to hire individual pilots and operate a full time business. Getting a ReOC is a more involved process that requires you to first have an RePL, and to then submit your company procedure and policies to the Civil Aviation Safety Authority (CASA) for review and approval. The reward for getting this certification is having more options and less restrictions regarding fly zones, and more industry recognition from potential customers who may decide they only want to hire pilots with the highest available certification level (ReOC holders). Get course dates and quotes

Variant	Cameras	Ticket price	Our price	$-OFF
X4	DJI X4S + standard DJI lens	$1,868	$1,357	$511
X5	DJI X5S body only (no lens). See X5S compatible Olympus and Panasonic lens list here.	$2,805	$2,298	$507
X5	DJI X5S + standard DJI lens	$2,999	$2,748	$251
X5	DJI X5R + standard DJI lens (records RAW dng sequences). See X5R compatible Olympus and Panasonic lens list here.	$4,599	$2,973	$1,626
X7	DJI X7 body only (no lens)	$4,299	$3,300	$999
X7	DJI X7 lens only. These are standard DJI lens, the X7 is only compatible with DJI lens here.	$7,399	$4,872	$2,527
X7	DJI X7 body + standard DJI lens. The X7 is only compatible with DJI lens here.	$11,698	$8,172	$3,526
Z30	DJI Z30 (includes 30x optical zoom lens)	$4,099	$2,477	$1,622

	Thermal Cameras
XT2	DJI Zenmuse XT2 30Hz 336x256 13mm Thermal Camera FZXT2B13FR	$11,440	$11,434	$6
XT2	DJI Zenmuse XT2 30Hz 336x256 19mm Thermal Camera ZXT2B19FR	$11,440	$11,434	$6
XT2	DJI Zenmuse XT2 30Hz 336x256 9mm Thermal Camera FZXT2B09FR	$11,440	$11,434	$6
XT2	DJI Zenmuse XT2 30Hz 640x512 13mm Thermal Camera ZXT2A13FR	$18,645	$18,639	$6
XT2	DJI Zenmuse XT2 30Hz 640x512 19mm Thermal Camera ZXT2A19FR	$18,645	$18,639	$6
XT2	DJI Zenmuse XT2 30Hz 640x512 25mm Thermal Camera ZXT2A25FR	$20,515	$20,509	$6
XT2	DJI Zenmuse XT2 9Hz 336x256 13mm Thermal Camera FZXT2B13SR	$9,531.5	$9,431.5	$100
XT2	DJI Zenmuse XT2 9Hz 336x256 19mm Thermal Camera FZXT2B19SR	$9,531.5	$9,431.5	$100
XT2	DJI Zenmuse XT2 9Hz 336x256 9mm Thermal Camera FZXT2B09SR	$10,499	$10,493	$6
XT2	DJI Zenmuse XT2 9Hz 640x512 13mm Thermal Camera ZXT2A13SR	$16,115	$16,109	$6
XT2	DJI Zenmuse XT2 9Hz 640x512 19mm Thermal Camera FZXT2A19SR	$16,115	$16,109	$6
XT2	DJI Zenmuse XT2 9Hz 640x512 25mm Thermal Camera FZXT2A25SR	$18,480	$18,474	$6
XTP	DJI Zenmuse XT-P Thermal Camera 30Hz 336x256 19mm ZXTB19FP V2	$11,583	$11,050.6	$532.4
XTP	DJI Zenmuse XT-P Thermal Camera 30Hz 640x512 13mm ZXTA13FP	$17,999	$17,993	$6
XTP	DJI Zenmuse XT-P Thermal Camera 30Hz 640x512 7.5mm ZXTA07FP	$18,199	$17,514.5	$684.5
XTP	DJI Zenmuse XT-P Thermal Camera 30Hz 640x512 19mm ZXTA19FP V2	$18,499	$17,499.5	$999.5
XTP	DJI Zenmuse XT-P Thermal Camera 9Hz 640x512 19mm 19SPV2	$17,349	$16,923.95	$425.05
XTP	DJI Zenmuse XT-P Thermal Camera 9Hz 640x512 9mm ZXTA09SP V2	$17,899	$17,199.5	$699.5
XTR	DJI Zenmuse XT-R Thermal Camera 30Hz 336x256 19mm ZXTB19FR V2	$13,999	$13,598.95	$400.05
XTR	DJI Zenmuse XT-R Thermal Camera 30Hz 360x256 9mm ZXTB09FRV2	$13,999	$13,598.95	$400.05
XTR	DJI Zenmuse XT-R Thermal Camera 30Hz 640x512 19mm ZXTA19FR V2	$21,899	$20,628.95	$1,270.05
XTR	DJI Zenmuse XT-R Thermal Camera 30HZ 640x512 13mm ZXTA13FRV2	$22,199	$20,446.75	$1,752.25
XTR	DJI Zenmuse XT-R Thermal Camera 30Hz 640x512 9mm ZXTA09FR	$22,299	$21,049.5	$1,249.5
XTR	DJI Zenmuse XT-R Thermal Camera 9Hz 640x512 19mm 19SRV2	$20,999	$20,344.5	$654.5

Variant	Cameras	Ticket price	Our price	$-OFF
X4	DJI X4S + standard DJI lens	$1,868	$1,357	$511
X5	DJI X5S body only (no lens). See X5S compatible Olympus and Panasonic lens list here.	$2,805	$2,298	$507
X5	DJI X5S + standard DJI lens	$2,999	$2,748	$251
X5	DJI X5R + standard DJI lens (records RAW dng sequences). See X5R compatible Olympus and Panasonic lens list here.	$4,599	$2,973	$1,626
X7	DJI X7 body only (no lens)	$4,299	$3,300	$999
X7	DJI X7 lens only. These are standard DJI lens, the X7 is only compatible with DJI lens here.	$7,399	$4,872	$2,527
X7	DJI X7 body + standard DJI lens. The X7 is only compatible with DJI lens here.	$11,698	$8,172	$3,526

Flight Battery Compatibility	AGRAS T40	AGRAS T20P	AGRAS T30
T40 Intelligent Flight Battery	Yes	Yes, but with increased battery level	Yes, but with increased battery level
T20P Intelligent Flight Battery	No	Yes	No
T30 Intelligent Battery	Yes, but with reduced payload	Yes, but with increased battery level	Yes

Charging Station Compatibility	T40 Intelligent Flight Battery	T20P Intelligent Flight Battery	T30 Intelligent Flight Battery
D12000iE Multifunctional Inverter Generator	Yes	Yes (adaptive power)	Yes (adaptive power)
T40 Intelligent Charger	Yes	Yes (adaptive power)	Yes (adaptive power)
D6000i Multifunctional Inverter Generator	Yes, but with slower charging	Yes	Yes, but with slower charging
T20P Intelligent Charger	Yes, but with slower charging	Yes	Yes, but with slower charging
D9000i Multifunctional Inverter Generator	Yes, but with slower charging (firmware upgrade required)	Yes (firmware upgrade required)	Yes
T30 Intelligent Charging Hub	Yes, but with slower charging (firmware upgrade required)	Yes (firmware upgrade required)	Yes

Intelligent Remote Controller Compatibility	AGRAS T40	AGRAS T20P	AGRAS T30
T40 Intelligent Remote Controller	Yes	Yes	No
T20P Intelligent Remote Controller	Yes	Yes	No

Propeller Compatibility	AGRAS T40	AGRAS T20P	AGRAS T30
AGRAS T40 (top propellers)	Yes	Yes	No
AGRAS T40 (bottom propellers)	Yes	No	No
AGRAS T20P propellers	Yes (top propellers)	Yes	No

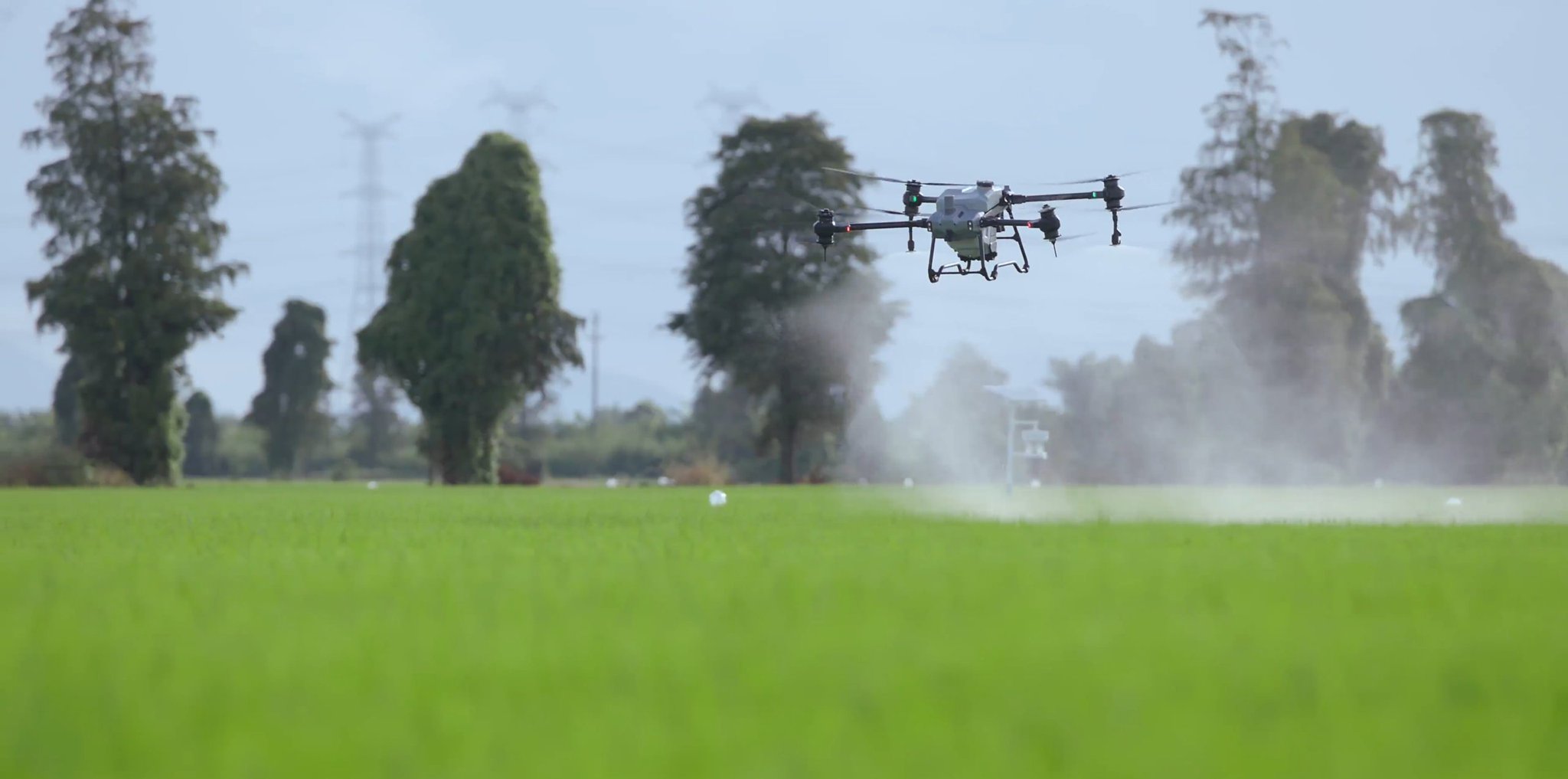

DJI Agras T40 Spraying Drone

DJI Agras T40 Spraying Drone

Aircraft Parameters

Total weight

Max Takeoff Weight[1]

Max Diagonal Wheelbase

Dimensions

Hovering Accuracy Range (with strong GNSS signal)

RTK/GNSS Operating Frequency

Hovering Time[2]

Max flight radius can be set

Max Wind Resistance

Propulsion System - Motor

Stator Size

Motor KV Value

Motor Power

Propulsion System - Propeller

Diameter

Rotor Quantity

Dual Atomized Spraying System - Operation Box

Operation Box Capacity

Operating Payload

Dual Atomized Spraying System - Sprinkler

Sprinkler Model

Sprinkler Quantity

Droplet Size

Max Effective Spray Width[3]

Dual Atomized Spraying System - Water Pump

Pump Model

Max Flow Rate

T40 Spreading System

Applicable Materials

Spread Tank Volume

Spread Tank Internal Load

Spread Width of Spreading System[4]

Recommended Operating Temperature

Active Phased Array Omnidirectional Radar

Model Number

Terrain Follow

Obstacle Avoidance[5]

Active Phased Array Backward and Downward Radar

Model Number

Altitude Detection[5]

Rear Obstacle Avoidance[5]

Binocular Vision System

Measurable Range

Effective Sensing Speed

FOV

Work Environment Requirements

Intelligent Remote Controller

Model

O3 Pro Operating Frequency[6]

O3 Pro Signal Effective Distance

Wi-Fi Protocol

Wi-Fi Operating Frequency[6]

Bluetooth Protocol

Bluetooth Operating Frequency

Location

Display Screens

Supported Aircraft

Operating temperature

Storage Temperature Range

Charging Temperature

Internal Battery Life

External Battery Life

Charging Type

Charging Time

T40 Intelligent Flight Battery

Model

Weight

Capacity

Voltage

D12000iE Multifunctional Inverter Generator

Output Channel

Battery Charging Time

Fuel Tank Capacity

Starting Method

Max Power of Engine

Fuel Type

Reference Fuel Consumption [8]

Max Takeoff Weight^{^[1]}

Hovering Time^{^[2]}

Max Effective Spray Width^{^[3]}

Spread Width of Spreading System^{^[4]}

Obstacle Avoidance^{^[5]}

Altitude Detection^{^[5]}

Rear Obstacle Avoidance^{^[5]}

O3 Pro Operating Frequency^{^[6]}

Wi-Fi Operating Frequency^{^[6]}
